chargeBIG: Charging Infrastructure Designed to Grow with Your Business
As part of the MAHLE Group, chargeBIG rethinks charging infrastructure with a simple, scalable, and cost-efficient approach.
From compact charging points such as the smallBOX and smallBOX PORTABLE to intelligent power distribution solutions like the chargeCLUSTER M, chargeBIG enables companies, fleet operators, car dealerships, and commercial properties to electrify their parking spaces quickly and efficiently.
By combining intelligent load management, integrated connectivity, and a streamlined hardware concept, chargeBIG helps customers scale their charging infrastructure as demand grows while keeping installation and operating costs under control.
Want to learn more? Meet our team at the booth or use the form below to request a follow-up.

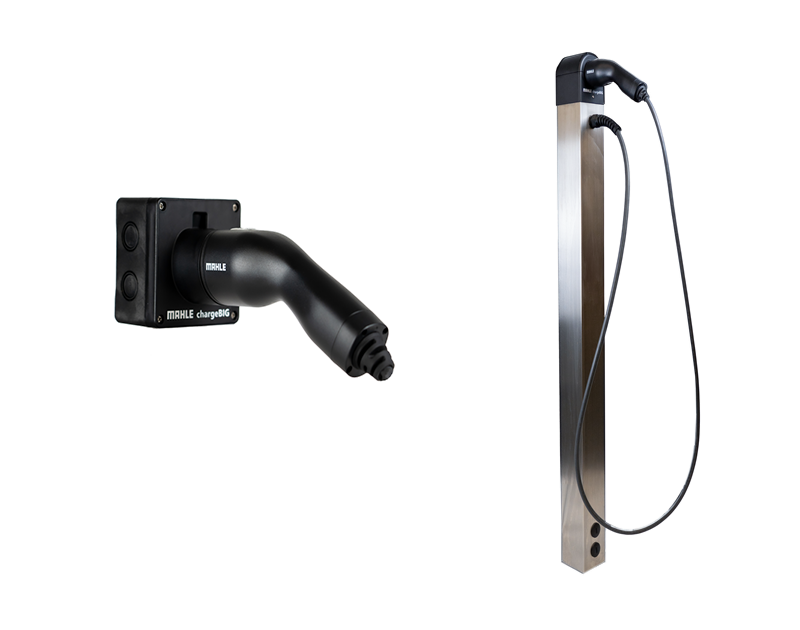

smallBOX
A compact wallbox for companies, workshops and car dealerships
What makes the smallBOX so special?
The smallBOX lives up to its name and is particularly compact in its wall-mounted version. Thanks to the attached cable, charging starts quickly, and there's no need to store a dirty or wet charging cable.
Want to learn more? Stop by our ChargeBIG colleagues at the booth or explore their website for additional information.
- Charging capacity up to 22 kW
- Fixed Type 2 charging cable (5 m / 7.5 m)
- Activation via chargeBIG app using QR code or NFC tag
- Activation via common charging apps using eRoaming
- Single or dual loader configuration
Dimensions in mm (H x W x D):
Wall bracket: 110 x 60 x 110
Column: 1150 x 100 x 100

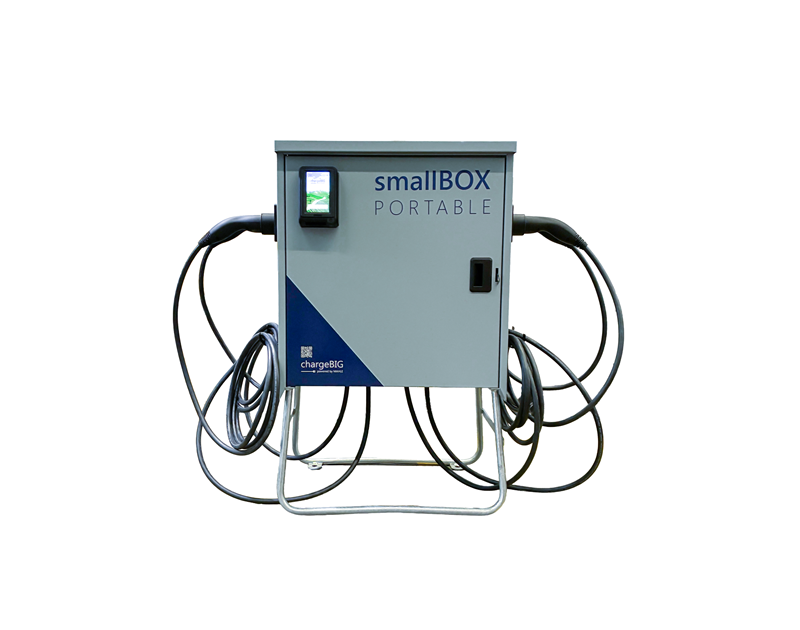

smallBOX PORTABLE
The charging solution for events, construction sites or for temporary charging points.
What makes the smallBOX PORTABLE so special?
The smallBOX PORTABLE is the ideal solution for companies looking to take their first steps into electromobility or expand their charging infrastructure with maximum flexibility. Designed for rapid deployment, it enables fleet electrification within minutes, without the need for complex installation work.
Choose between a plug-and-play version for immediate use or an RFID and app-enabled version, allowing drivers to conveniently activate charging sessions using existing fuel or charging cards.
Want to learn more? Stop by our ChargeBIG colleagues at the booth or explore their website for additional information.
- Charging capacity up to 22 kW
- 4 x Attached Type 2 charging cables, 7.5 m
- Static load management
- Interface: Modbus TCP
- In accordance with calibration law
- Communication via LTE
- Connection up to 63 A three-phase
- Integrated RCD & DC fault current sensor
Dimensions in mm (H x W x D):
1200 x 750 x 400

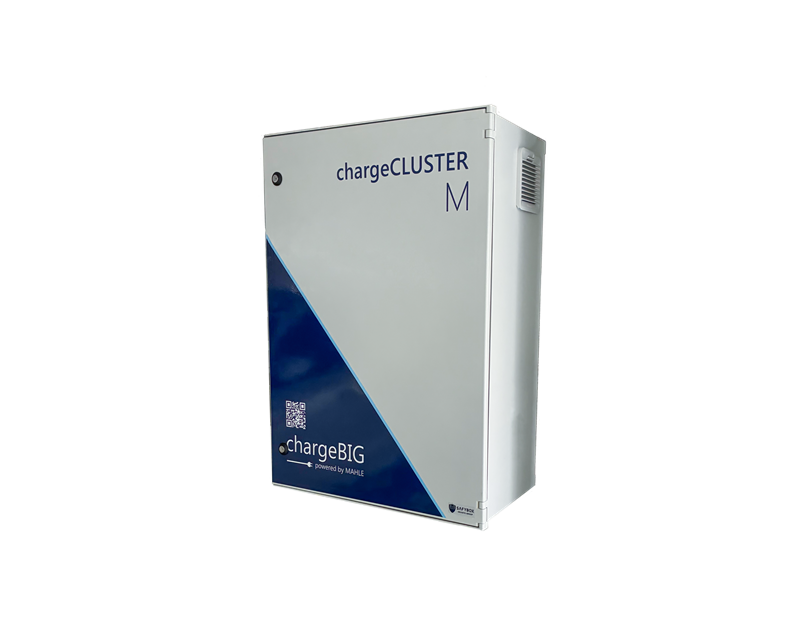

chargeCLUSTER M
A pre-configured sub-distribution for companies, workshops and car dealerships
What makes the chargeCLUSTER M so special?
Compared to conventional wallbox charging solutions, the chargeCLUSTER M uses a centralized approach, which means that all electronic components are consolidated into a single charging distribution unit. This enables a significant reduction in costs and effort during installation and maintenance. The integrated load management makes maximum use of the existing power connection without overloading the grid.
Want to learn more? Stop by our ChargeBIG colleagues at the booth or explore their website for additional information.
- Up to 6 charging points per unit
- In accordance with calibration law (Recalibration in the field possible)
- Dynamic load management
- Interfaces: Modbus TCP, OCPP 1.6J
- Communication via LTE & LAN
- Integration into the building management system
- Integration into fire alarm system
- Integrated RCD & DC fault current sensor
Dimensions in mm (H x W x D):
Wall-mounted: 600 x 800 x 300
Floor-mounted: 1400 x 1400 x 300
