Gasket Literature

MAHLE Original features OE form, fit & function in exhaust gaskets for the GM V8 LS series*: 4.8L, 5.3L, 5.7L, 6.0L, 6.2L!

MAHLE Aftermarket is committed to staying in step with changing sealing technology; an example is the exhaust manifold gasket for this engine series.

*Covers 14,500,000 vehicles in operation.

Demand OE form, fit & function... DEMAND MAHLE Original!

Oil Filter Adapter Gasket for the popular*

Ford 4.6L / 5.4L Engines

Replacing the oil filter on this popular engine?

When replacing this oil filter, the gasket is also commonly replaced to fix or prevent leaks. MAHLE Aftermarket offers the OE equivalent MAHLE Original gasket which has superior oil resistance compared to the competitor.

*Covers 11,000,000 vehicles in operation.

Download PDF [PDF; 2286 KB]

Oil Filter Adapter Gasket for the popular*

2004-2011 GM 3.5L / 3.9L "High Value" Engines

Replacing the oil filter on this popular engine?

When replacing this oil filter, the gasket is also commonly replaced to fix or prevent leaks. MAHLE Aftermarket offers the OE equivalent MAHLE Original gasket which has superior oil resistance compared to the competitor.

*Covers 3,250,000 vehicles in operation.

Download PDF [PDF; 2169 KB]

MAHLE Original makes a 5.7L HEMI® rebuild easier!

This MLS replacement head gasket is a consolidated design fitting all 5.7L Hemi 2003-2014 engines. The head gasket has been tailored to engine builders by accommodating 0.030” overbore. A thicker, four-layer gasket is also available to allow for cylinder head/cylinder block resurfacing providing the greatest flexibility in block/deck, cylinder head, and cylinder bore corrections.

No need to stock two different gaskets depending on the engine year.

Download PDF [PDF; 2231 KB]

Working on a 3.6L Chrysler Pentastar® rebuild? MAHLE Original has exclusive coverage, including EVERY gasket you will need.

This gasket set (95-3748VR) includes 83 pieces, which are only offered by MAHLE Original! Three (3) oil pan gaskets are included to allow this set to fit nearly EVERY 3.6L Pentastar application.

Download PDF [PDF; 2495 KB]

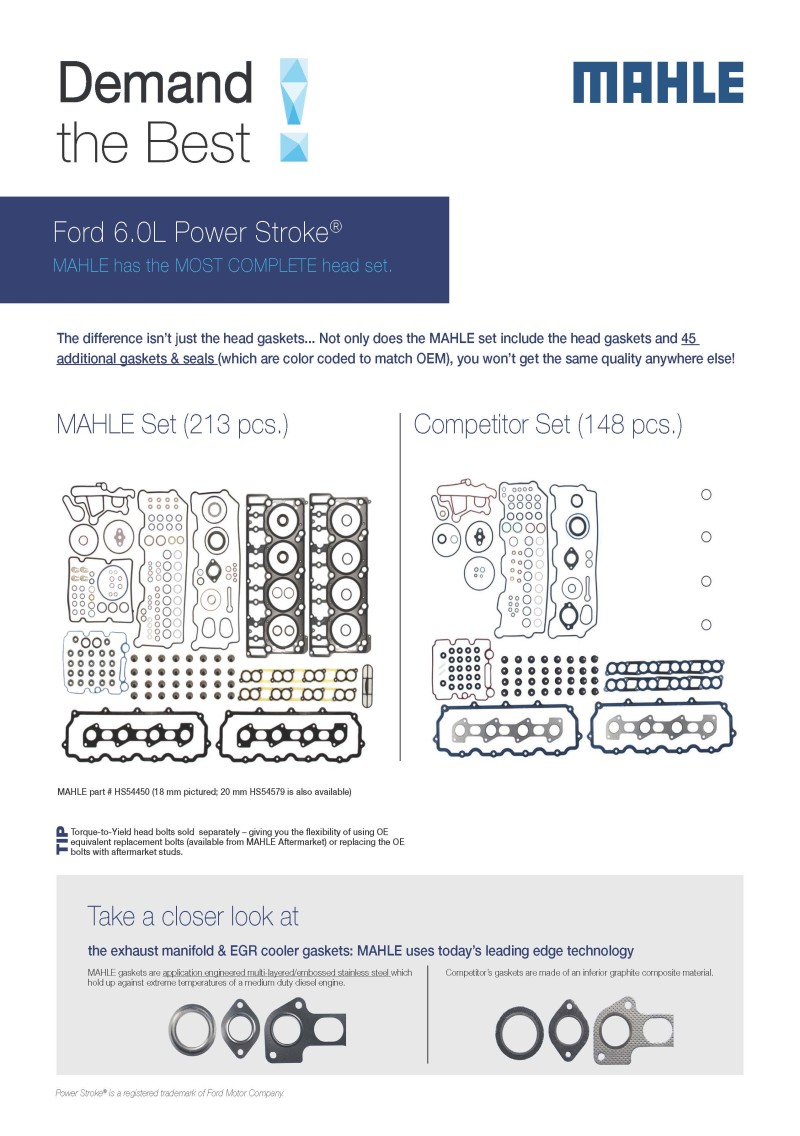

MAHLE Original has the MOST COMPLETE head set for the Ford 6.0L Power Stroke® engine!

The difference isn’t just the head gaskets... Not only does the MAHLE Original set include the head gaskets and 26 additional gaskets & seals (which are color coded to match OEM), YOU WON'T GET THE SAME QUALITY ANYWHERE ELSE!

Taking a closer look at the ex. manifold & EGR cooler gaskets

  • The MAHLE Original gaskets are application engineered multi-layered/embossed stainless steel which hold up against extreme temperatures of a medium duty diesel engine.
  • Brand F’s gaskets are made of an inferior graphite composite material.

Download PDF [PDF; 2893 KB]

MAHLE Original has a Black Diamond™ coated 5-LAYER MULTI-LAYERED STEEL HEAD GASKET for the Ford Power Stroke® engine!

These MAHLE Original® head gaskets, with advanced Black Diamond™ coating technology are:

  • Constructed of (5) five stainless steel layers
  • Utilizing patented integrated push rod locators
  • Coated with a Victor Reinz proprietary fluoroelastomer (rubber) coating

*The additional layer helps reduce cylinder head lift to maintain a superior combustion seal.

Download PDF [PDF; 2430 KB]

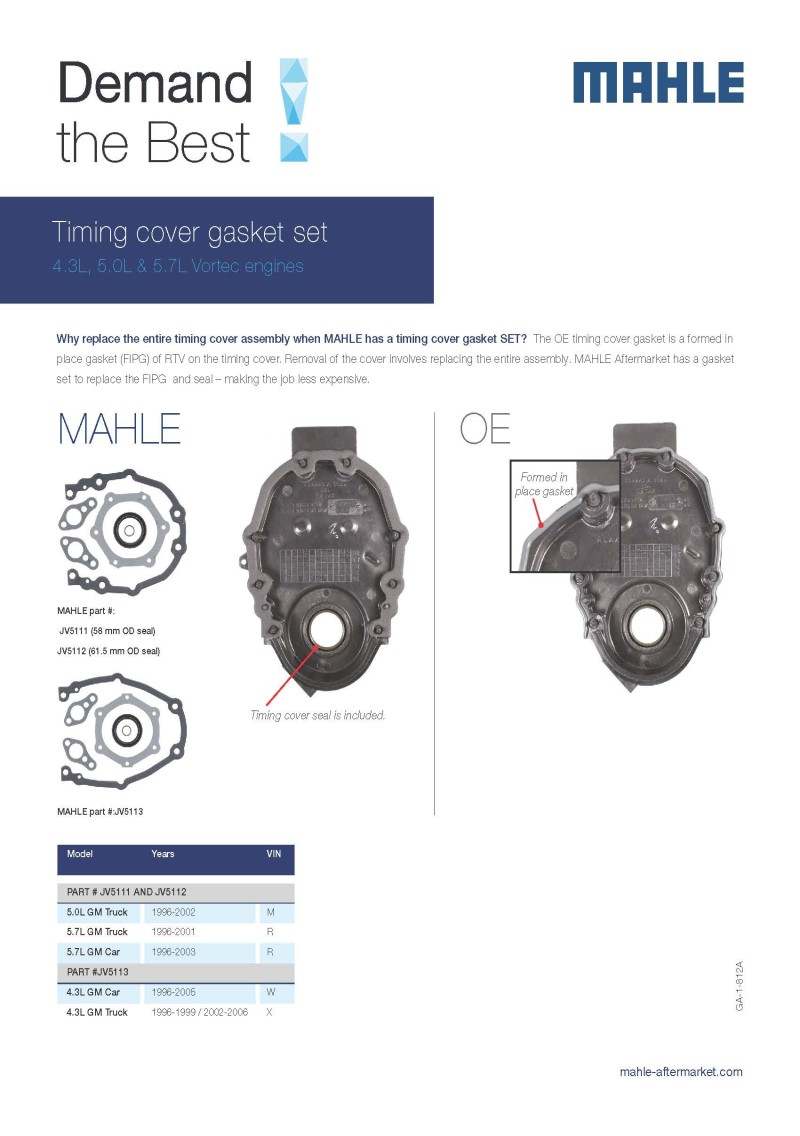

Why replace the entire timing cover assembly on 4.3L, 5.0L & 5.7L Vortec engines when MAHLE Original has a timing cover gasket SET?

The OE timing cover gasket is a formed in place gasket (FIPG) of RTV on the timing cover. Removal of the cover involves replacing the entire assembly. MAHLE Original has a set to replace the FIPG and seal – making the job less expensive.

This MAHLE Original gasket set is available for the following applications:

Part No. JV5111 (58mm O.D. seal) and JV5112 (61.5mm O.D. seal)
GM Truck (5.0L) VIN M (‘96-’02)
GM Truck (5.7L) VIN R (‘96-’01)
GM Car (5.7L) VIN R (‘96-’03)

Part No. JV5113
GM Car (4.3L) VIN W (‘96-’05)
GM Car (4.3L) VIN W (‘96-’05)

Download PDF [PDF; 2485 KB]

Multi-Layered Agricultural Head Gaskets

MAHLE Original OE Form, Fit & Function makes a difference!

The MAHLE Original® gaskets have three layers and are the factory design which are metal clad and contain every factory grommet. Grommets increase the sealing load around the fluid and combustion openings.

Brand F has two layers; a steel layer is missing from the top. This gasket is also missing the coolant grommets, but includes the high pressure oil grommet. It is composed of a noncored sealing material which would further aggravate the high pressure oil grommet and combustion sealing load during engine operation. Without grommets, it is difficult to obtain the proper sealing load at fluid openings that are not near a bolt.

On the surface, the MAHLE Original gasket may appear more expensive, but it comes with the peace of mind that your machinery is properly sealed - done right the first time!

Watch our video on YouTube for more information.

Download PDF [PDF; 4062 KB]

MAHLE Original has the MOST COMPLETE head set for the Ford 6.4L Power Stroke® engine!

The MAHLE Original set has 71 more pieces - such as the lower valve cover and intake/exhaust manifold gaskets, o-rings, high pressure oil pump and valve steam seals, and more... '

(Visit www.youtube.com/mahleclevite for more information)

Download PDF [PDF; 2673 KB]

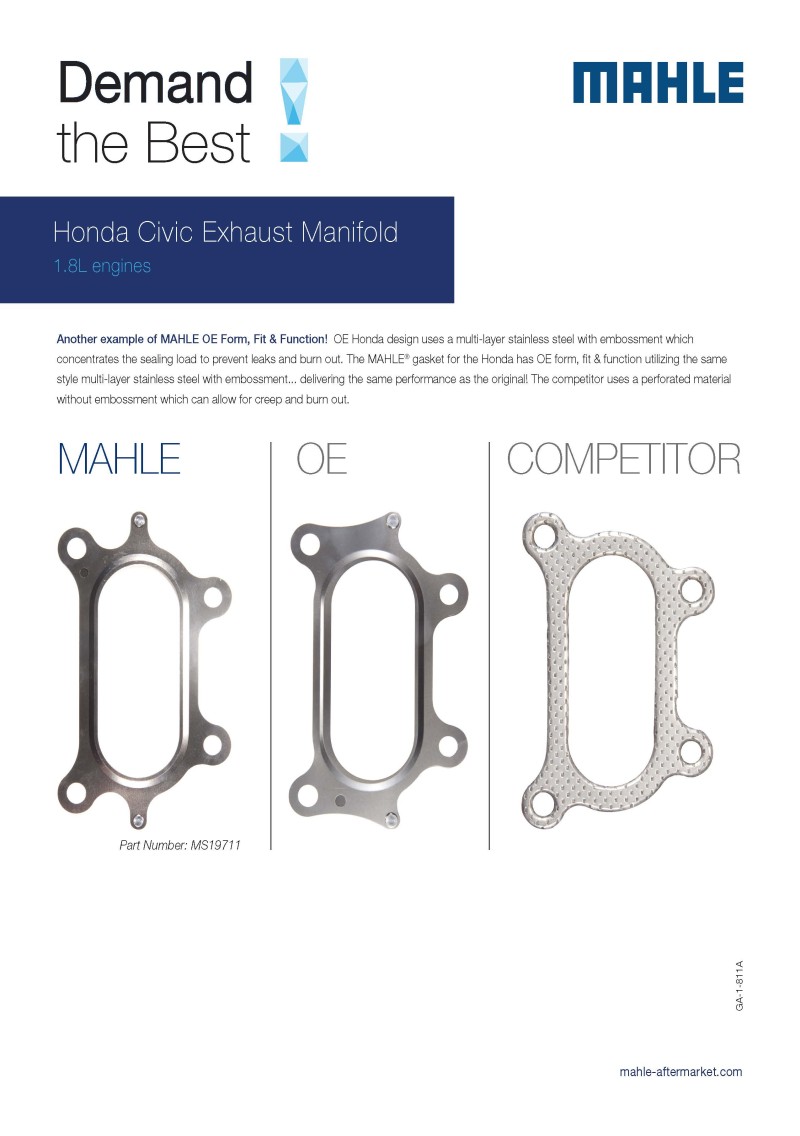

Honda Civic 1.8L Exhaust Manifold Gasket
Another Example of MAHLE Original Form, Fit & Function

OE Honda design uses a multi-layer stainless steel with embossment which concentrates the sealing load to prevent leaks and burn out.

The MAHLE Original gasket for the Honda has OE form, fit & function utilizing the same style multi-layer stainless steel with embossment... delivering the same performance as the original!

Brand F uses a perforated material without embossment which can allow for creep
and burn out.

Download PDF [PDF; 2110 KB]

MAHLE Original has what YOU need when changing the Fuel Injectors in a 6.6L Duramax Diesel!

MAHLE Original created Master Valve Cover Sets to include all the necessary gaskets needed for installing fuel injectors in a Duramax Diesel. The OE sells all the parts separately which provides you with extra parts you don’t need and added expense.

Download PDF [PDF; 2405 KB]

Duramax rocker cover gaskets ... What you see is what you get – MAHLE Original IS OE Quality!

OE Duramax diesel rocker cover gaskets use rubber coated single-layer stainless steel with embossment which concentrates the sealing load to prevent leaks.

The MAHLE Original rocker cover gasket has OE form, fit & function utilizing the same style rubber coated single-layer stainless steel with embossment... delivering the same performance as the original!

Brand F uses a simple graphite material without embossment.

Download PDF [PDF; 2351 KB]

Replacing the spark plugs on a 3.0L Saturn VUE? MAHLE Original has the gaskets you'll need!

MAHLE Original gaskets are specifically molded to precise specifications in order to ensure proper OE form, fit & function. So why choose anything else?

Watch our video on YouTube for more information.

Download PDF [PDF; 2552 KB]

MAHLE Original has the gaskets for ALL THREE Subaru Impreza WRX engines!

MAHLE Original has 17 different gasket sets available, including:

  • Head Sets
  • Lower Sets
  • Manifold Sets
  • Valve Cover Sets
  • Turbo Sets
  • ... And head bolts

We've got the EJ253 and EX30D engines covered too.

Download PDF [PDF; 2263 KB]

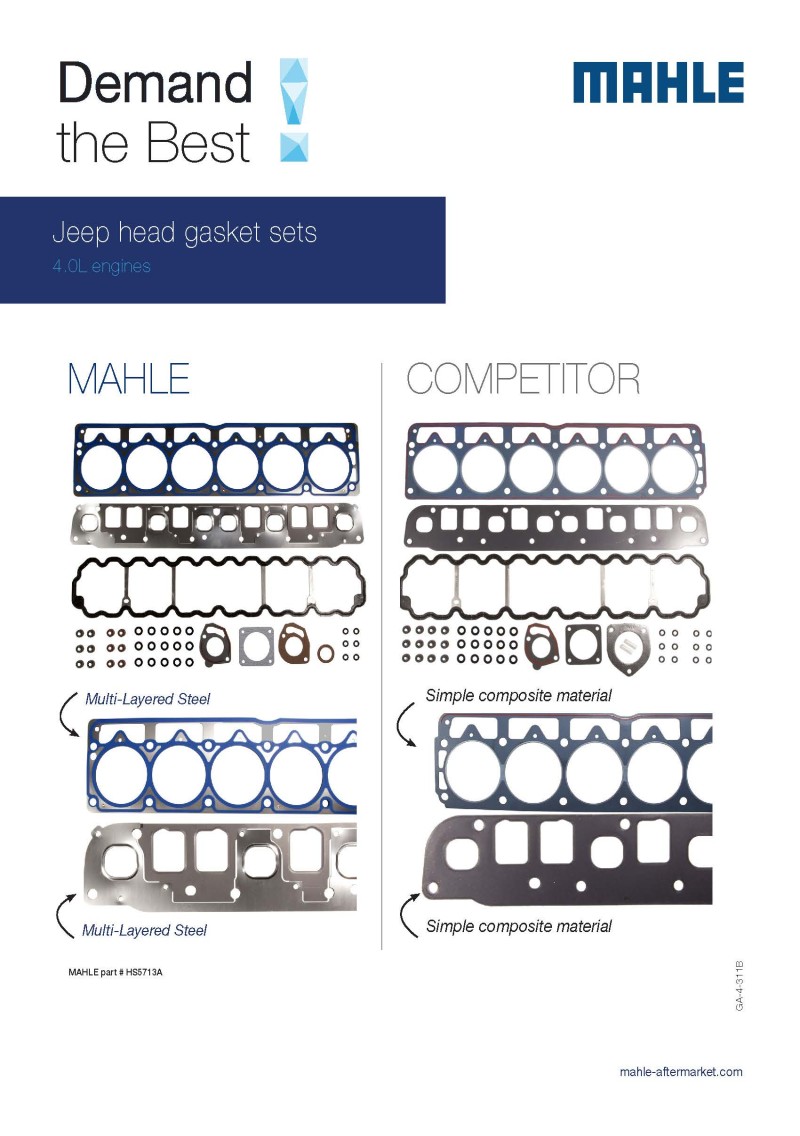

Jeep 4.0L Head Gasket Sets!

Trust in OE Quality... trust in MAHLE Original!

Download PDF [PDF; 2424 KB]

If you need gaskets for a Chevy or GM Truck with a Duramax® Diesel Engine... MAHLE Original has you covered.

  • Industry leading coverage for this very popular engine
  • Four different head gaskets capable of handing the HP Duramax owners demand
  • Head sets, lower sets, head bolts, manifold installation sets and valve cover sets – MAHLE Original has them all
  • OE Form Fit & Function

Download PDF [PDF; 1939 KB]

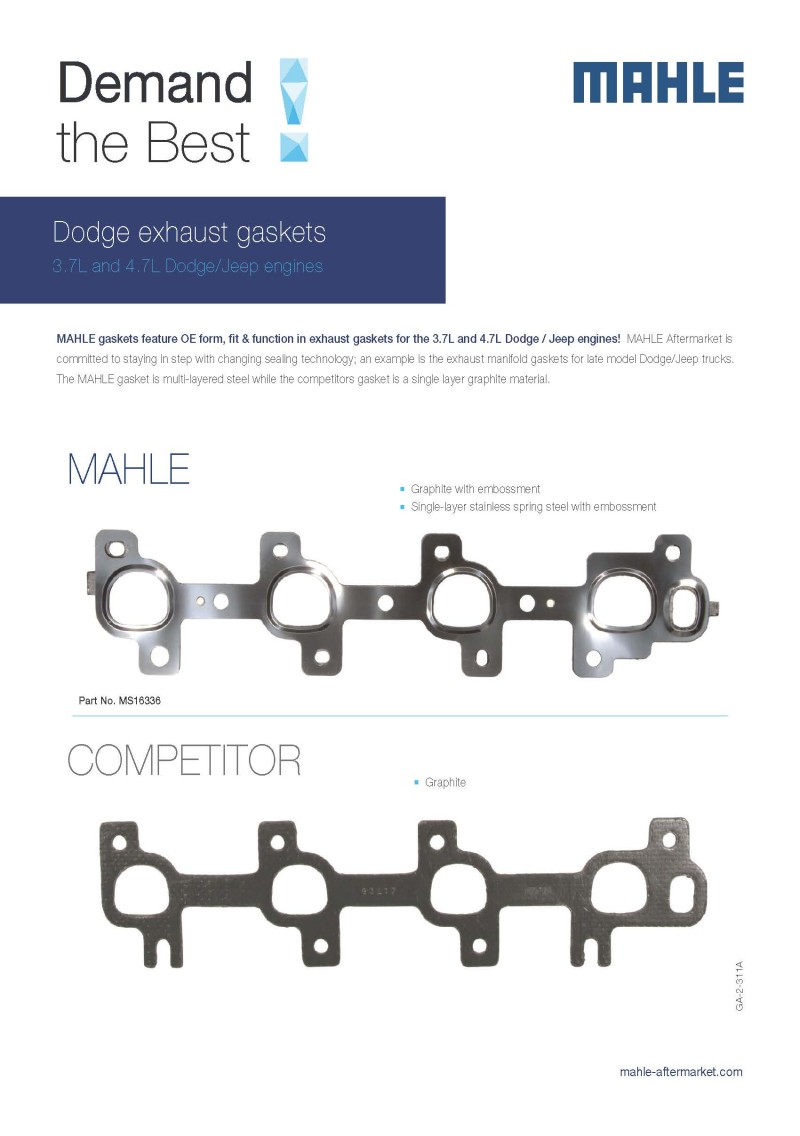

MAHLE Original features OE form, fit & function in exhaust gaskets for the 3.7L and 4.7L Dodge/Jeep trucks!

MAHLE Original is committed to staying in step withchanging sealing technology; an example is the exhaust manifold gaskets for late model Dodge/Jeep trucks.

Download PDF [PDF; 2038 KB]

MAHLE Original has the MOST COMPLETE timing cover set for the 6.0L & 6.4L Power Stroke® engines!

Download PDF [PDF; 2131 KB]

The 6.0L Power Stroke® is HOT!

Don’t limit yourself with the factory manifold 8-piece set... MAHLE Original understands the pain of not having all the parts you need.. Our manifold installation set for the Ford Power Stroke is the solution!

Download PDF [PDF; 2302 KB]

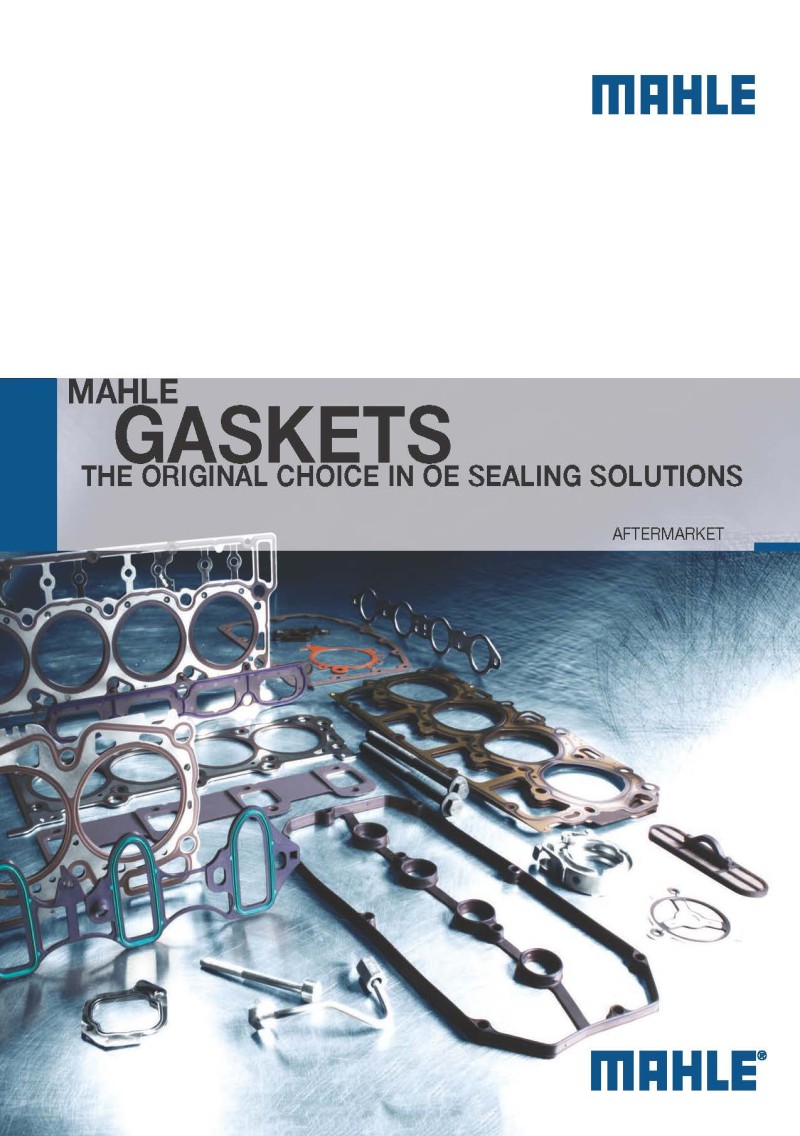

The original choice in OE sealing solutions.

Download PDF [PDF; 3421 KB]
